Project Brief

Site Introduction

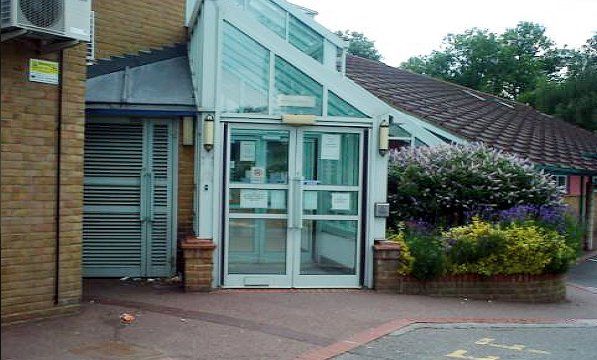

Hollmark were commissioned to upgrade the fire alarm system at Purfleet Medical Centre, a live NHS site.

Scope of Works

To upgrade the existing fire alarm system to a new addressable fire alarm system as the previous F/A system was not compliant to a L2 system. From our survey we identified and carried out the following works:

All rooms opening onto the fire route require Protection.

-

All exit doors should have a manual call point.

-

All wiring will require a rewire due to the integrity of the existing and the new works proposed on site.

New installation included:

35 55000-600APO Apollo Addressable Optical Smoke Detector

-

4 55000-400APO Apollo XP95 HEAT ANALOG DET

-

20 45681-330APO Apollo SOUNDER ADDR BEACON BASE VI Iso

-

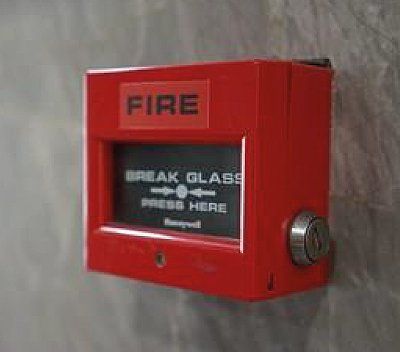

19 SA5900-908APO Apollo CALL POINT ADDR Intelligent

-

1 MX-5401 Advanced Electronics FIRE PANEL ADDR 1-4 Loop c/w 1x Card

-

1000 599.048.022 CABLE 1.5mm 2 CORE & EARTH RED

-

1 Sundries Installation Materials

-

2 BAT-3104 12A 12v Yuasa Battery

-

19 PS200 KAC MCP HINGED COVER - PLAIN KAC Transparent Hinged

ON Site CHALLENGES

Working in a live environment, care had to be taken to ensure the day-to-day operations of the medical centre were not disrupted.

We held pre-start meetings with the client team and together we agreed a planned programme of works; from which we were able to work around their timetable, so that we caused the minimalist amount of disruption as possible.

With staff and members of the public within the building we had to ensure all working sites were secure and safe, no tools or equipment left unattended, and these areas were left clean and tidy as soon as installation had finished.
